BNSF

BNSF searchlight signals can be connected to the Signalist SC1 as in the below diagrams.

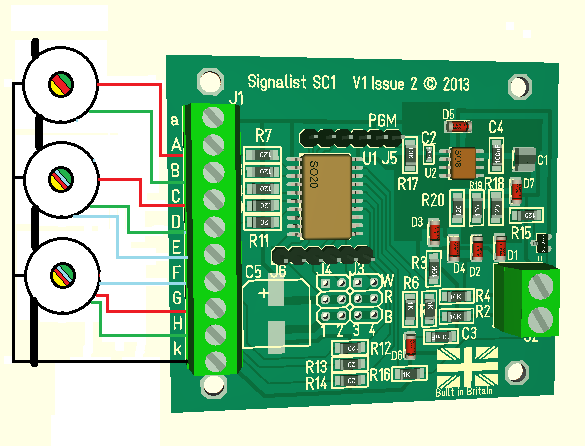

BNSF triple head searchlight connected to a SC1

B. N. S. F. triple head searchlight wiring diagram

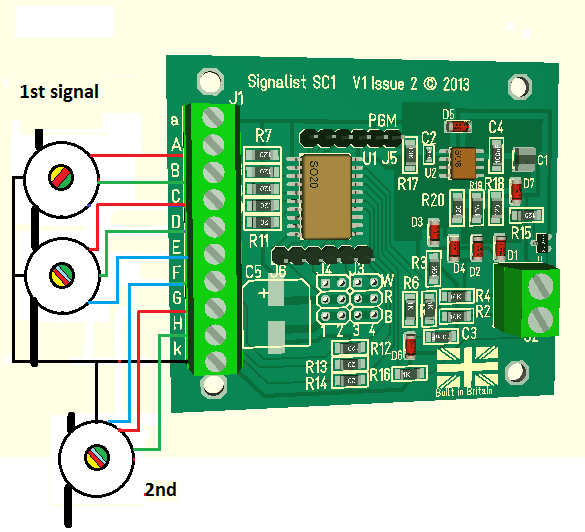

BNSF twin head + single head searchlight connected to a SC1

B. N. S. F. double head searchlight wiring diagram


Note that when using the CV38=8 configuration, flashing aspects can be achieved by toggling between the solid aspect and dark. Software such as JMRI will do this automatically.

BNSF
1996 Rule

Description

Aspect No

Triple head when CV38=76

Double head when CV38=77

Single head when CV38=77

Aspect
No

Single head when CV38=132

Single head when CV38=129

9.1.14/15

Stop

0

R

R

R

R

R

R

0

R

R

9.1.13

Restricting (alt 1)

1

r

R

R

r

R

r

4

r

r

9.1.13

Restricting (alt 2)

2

R

R

r

R

r

r

4

r

r

9.1.13

Restricting (alt 3)

3

R

R

L

R

L

L

3

L

-

9.1.13

Restricting (alt 4)

4

R

L

R

R

L

L

3

L

-

9.1.13

Restricting (alt 5)

5

R

R

L

R

L

L

3

L

-

9.1.10

Div. Approach Div.

6

R

Y

Y

- -

-

8

-

-

9.1.12

Diverging

Approach (alt1)

7

R

R

Y

- -

-

8

-

-

9.1.12

Diverging

Approach (alt2)

8

R

Y

R

R

Y

-

8

-

-

9.1.11

Diverging

Approach Medium

10

R

y

R

R

y

-

8

-

-

9.1.11

Approach

Restricting (alt1)

12

Y

r

R

Y

r

-

8

-

-

9.1.9

Diverging Clear (alt1)

13

R

R

G

- -

-

8

-

-

9.1.9

Diverging Clear (alt2)

14

R

G

R

R

G

-

8

-

-

9.1.7

Approach

Restricting (alt2)

16

Y

L

R

Y

L

-

8

-

-

9.1.8

Approach

17

Y

R

R

Y

R

Y

1

Y

Y

9.1.6

Approach

Medium (alt1)

19

Y

Y

R

Y

Y

-

8

-

-

9.1.6

Approach Med. (alt2)

20

y

R

R

y

R

y

5

y

y

9.1.5

Advance Approach

21

Y

G

R

Y

G

-

8

-

-

9.1.4

Approach Limited

22

Y

g

R

Y

g

-

8

-

-

9.1.3

Clear

23

G

R

R

G

R

G

2

G

G

-

Dark

31

- - -

- -

-

8

-

-


Key R=Red, r=Flashing Red G =Green, g=Flashing Green, Y=Yellow, y=Flashing Yellow, L=Lunar,
W=White.


In JMRI use DCC Signal Mast Decoder for CV38=76, CV38=77, CV38=132 and CV38=129. For CV38=8 use Double Output or Triple Output RGB for each head. Visit the JMRI BNSF-1996 signal system to see the available mast types.


Signal reference chart for the 1996 rules can be found on page 2 of this document at the Freinds of the Burlington Northern website:- BNSF 1996 special instructions PDF
