Canada (CROR rules)

Canadian searchlight signals can be connected to the Signalist SC1 as in the below diagrams.

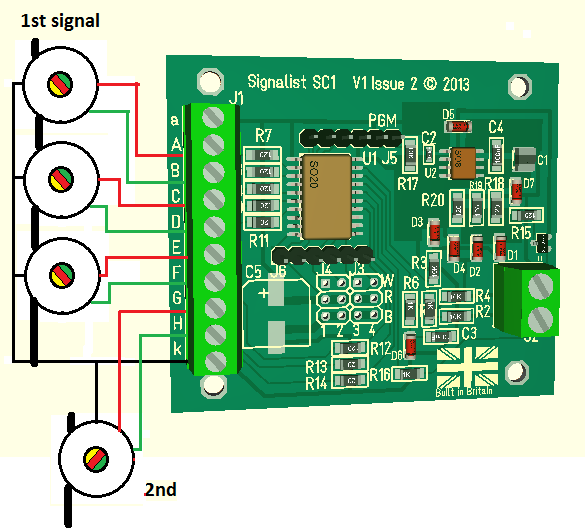

CROR triple head + single head searchlights connected to a SC1

Canada triple head searchlight wiring diagram


CROR twin head searchlights connected to a SC1

Canada twin head searchlight wiring diagram

CROR twin head searchlights connected to a SC1

Note that when using the CV38=8 configuration, flashing aspects can be achieved by toggling between the solid aspect and dark. Software such as JMRI will do this automatically.

CROR

Rule

Description

Aspect

No

Triple (A-F)

CV38=65

Double

CV38=66

Single (G+H)

CV38=65

Aspect

No

Single

CV38=129

437/39

Stop

0

R R R

R R

R

0

R

438

Take siding

1

R R r

R r

r

4

r

430/36

Restricting

2

R R Y

R Y

R

0

R

429/35

Slow to stop

3

R R y

R y

-

8

-

434

Slow to slow

4

R y y

-

-

8

-

433

Slow to Medium

5

R y G

-

-

8

-

432

Slow to Limited

6

R y g

-

-

8

-

428/31

Slow to Clear

7

R R G

R G

-

8

-

427

Medium to stop

8

R Y R

-

-

8

-

426

Medium to restricting

9

R Y r

G r

-

8

-

425

Medium to Slow

10

R G  y

-

-

8

-

424

Medium to medium

11

R G G

-

-

8

-

423

Medium to Limited

12

R G g

-

-

8

-

422

Medium to Clear

13

R G R

-

-

8

-

421

Limited to stop

14

R y R

-

-

8

-

420

Limited to restricting

15

R y r

g r

-

8

-

419

Limited to Slow

16

R g  y

-

-

8

-

418

Limited to Medium

17

R g G

-

-

8

-

417

Limited to Limited

18

R g g

-

-

8

-

416

Limited to Clear

19

R g R

-

-

8

-

415

Adv. clear to stop

20

y R R

y R

y

5

y

414

Adv. clear to slow

21

y Y R

y Y

-

8

-

413

Adv. clear to medium

22

y G R

y G

-

8

-

412

Adv. clear to limited

23

Y g R

Y g

-

8

-

411

Clear to stop

24

Y R R

Y R

Y

1

Y

410

Clear to restricting

25

Y R r

Y r

-

8

-

408/09

Clear to Slow

26

Y Y R

Y Y

-

8

-

407

Clear to Medium

27

Y G R

Y G

-

8

-

406

Clear to limited

28

Y g R

Y g

-

8

-

405

Clear

29

G R R

G R

G

2

G

-

Dark

31

- - -

- -

-

8

-


Key R=Red, r=Flashing Red G =Green, g=Flashing Green, Y=Yellow, y=Flashing Yellow, L=Lunar,
W=White.


In JMRI use DCC Signal Mast Decoder for CV38=65, CV38=66 and CV38=129. For CV38=8 use Double Output for each head. Visit the JMRI CROR-2008 signal system to see the available mast types.


Current signal rules and aspects can be seen on the Transport Canada website:- TC O-0-93
Signal reference chart for older rules can be found at the Signals of the US website:- CROR PDF

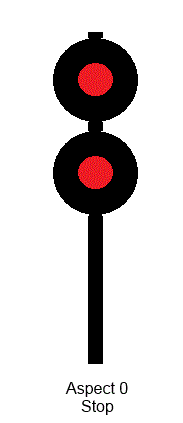

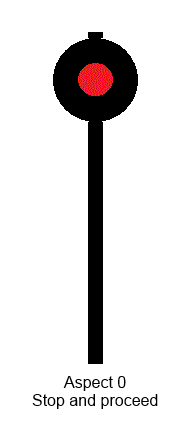

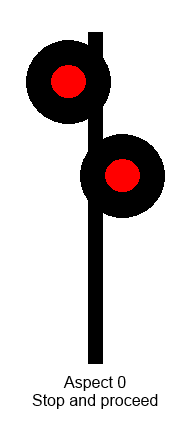

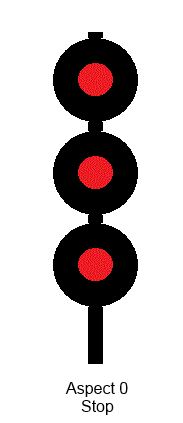

CROR Triple head aspect sequence     Double head CROR searchlight aspects     Staggered CROR searchlight aspects     Single head CROR searchlight aspects
                Triple head     Double head absolute     Staggered permissive    Single head permissive
